[Solved] Using an Image As an Opacity Mask

by


Anything through transparent regions in opacity mask will not be shown

Here’s a complete example:

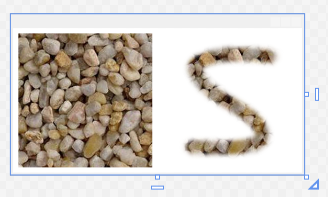

enter image description here

enter image description here

enter image description here

enter image description here

Code:

<Window x:Class="WpfApp1.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d" SizeToContent="WidthAndHeight">
    <StackPanel Orientation="Horizontal">
        <Image Source="rocks.png" Margin="10" />
        <Image Source="rocks.png" Margin="10">
            <Image.OpacityMask>
                <ImageBrush ImageSource="mask1.png" />
            </Image.OpacityMask>
        </Image>
    </StackPanel>
</Window>

https://learn.microsoft.com/en-us/dotnet/framework/wpf/graphics-multimedia/opacity-masks-overview#using-an-image-as-an-opacity-mask

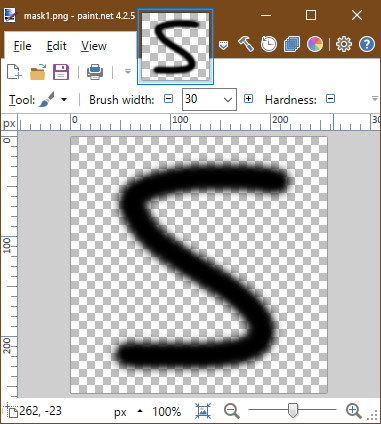

I have put everything you need to understand how it works, open the opacity mask in something like Paint.NET and you should understand how to replicate that.

5

solved Using an Image As an Opacity Mask
