If you are experiencing the issue of the OMV-Extras menu not showing Docker, Portainer, or other plugins in OpenMediaVault (OMV), don’t worry. This problem can be resolved by following a few troubleshooting steps. In this article, we will guide you through the process of fixing this issue and getting the OMV-Extras menu to display the desired plugins.

Log in to your OMV web interface.
Go to the “System” section.
Go to the “Plugins” section.
Look for the “OpenMediaVault compose plugin” plugin.
If it is not installed, click on the “Install” button to install it.
Wait for the installation to complete.
Once installed, refresh the web interface.

Install Docker

Go to the “Services” section.
Go to the “Compose” section.
Go to the “Settings” section.

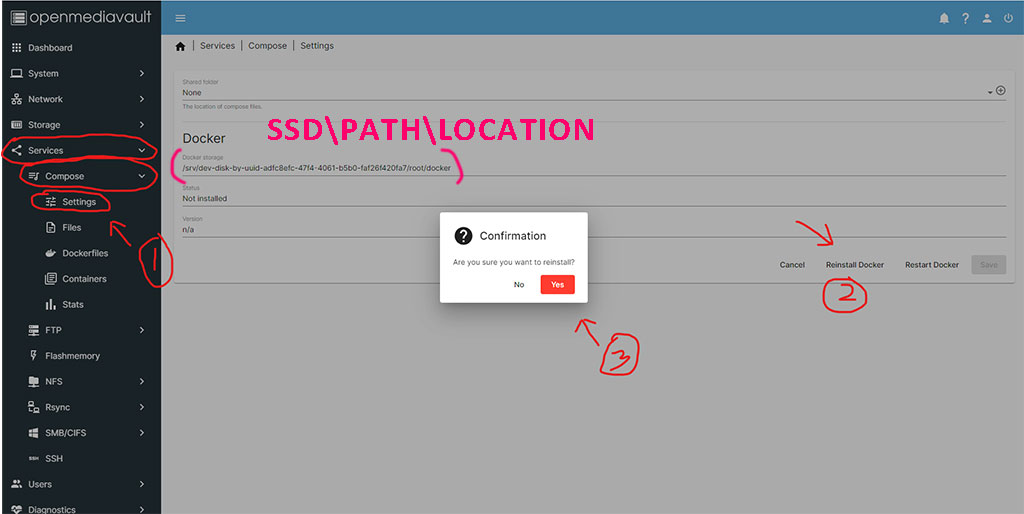

Under Services > Compose > Settings

Docker storage

At plugin installation time, docker will be installed simultaneously in the default path /var/lib/docker. This path will be on the OMV system disk.
- If you don’t need to change anything, leave it as it is, docker is already installed.
- If you need to change this route for any reason you can do the following:
  - In the Docker Storage field, type the path of the folder where you want to install Docker.
  - Click Save button.

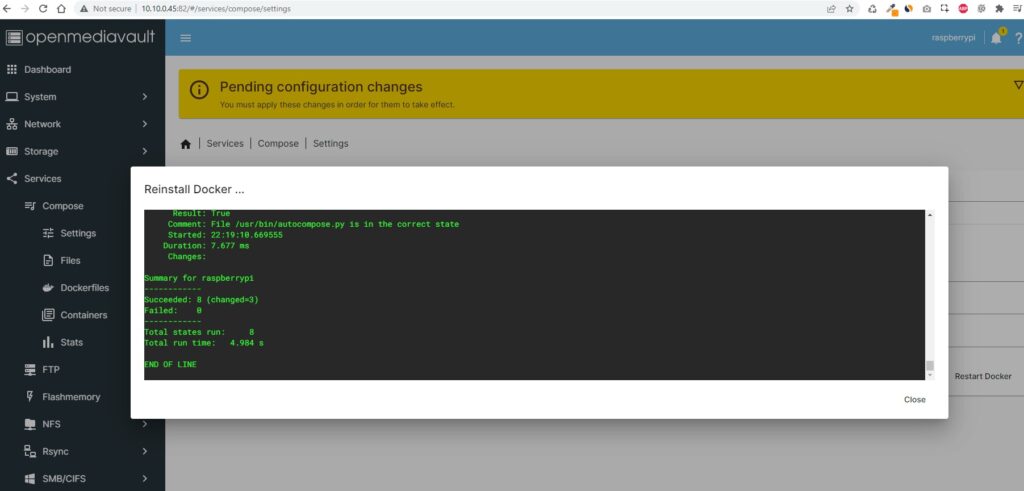

  - Click Reinstall Docker button. Docker is now installed in the new path.

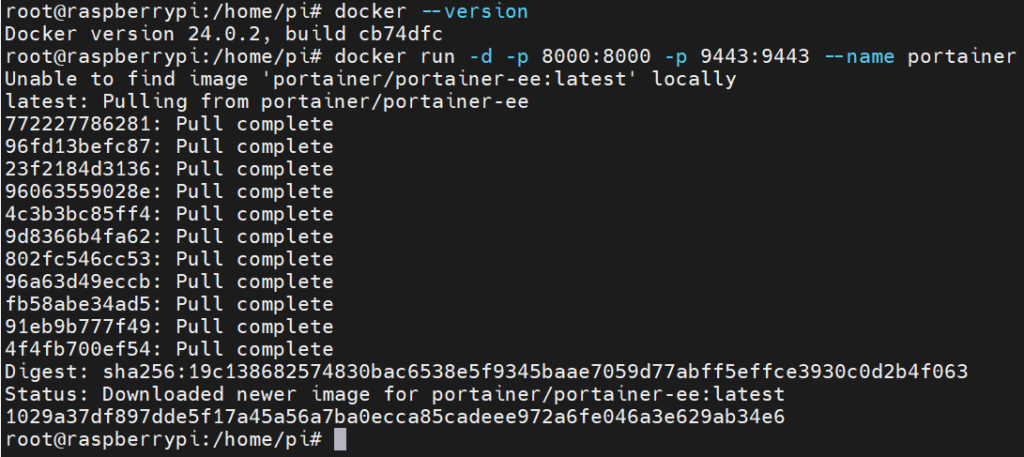

now check again with ssh -> connect with your machine type command in Linux given below:

docker –version

install Portainer on Docker (OMV)

Linux command in given below:

Basic Portainer (Community Edition) its Totaly free command in Linux is given below:

docker run -d -p 8000:8000 -p 9443:9443 --name portainer --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data portainer/portainer-ee:latest

Business Edition needs a Licence (its free for 6 devices) command in Linux is given below:

docker run -d -p 8000:8000 -p 9000:9000 --name=portainer --restart=always --pull=always -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data cr.portainer.io/portainer/portainer-ee:latest

now I go with Business Edition

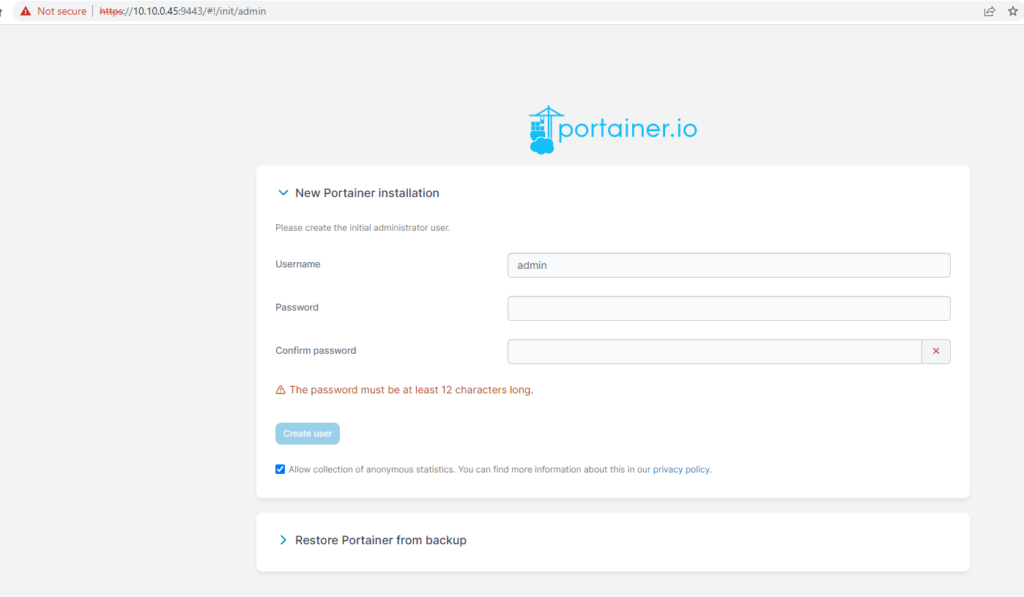

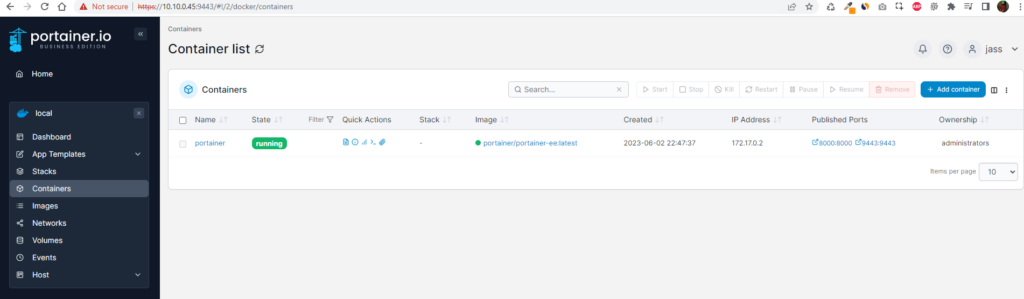

then Log in to your Portainer web interface.
remember go with http:// to https://your-ip:9443(port)/

for example:- https://10.10.0.45:9443/

(Docker) Compose Plugin For OMV 6

Introduction to Docker and OMV6
What is Docker Compose?
Benefits of Using Docker Compose
Overview of OMV6
Why Use a Compose Plugin for OMV6?
Installation of Docker Compose Plugin
Configuring Docker Compose Plugin for OMV6
Managing Docker Containers with Docker Compose Plugin
Advanced Features and Customization Options
Best Practices for Using Docker Compose Plugin with OMV6
Troubleshooting Common Issues
Security Considerations
Future Developments and Updates
Conclusion
FAQs

(Docker) Compose Plugin For OMV6

Docker has revolutionized the way applications are deployed and managed, offering a lightweight and portable solution for running software in isolated environments. OpenMediaVault 6 (OMV6) is a popular open-source network-attached storage (NAS) solution that provides a powerful web-based interface for managing storage and services. By combining Docker and OMV6, users can leverage the benefits of containerization while utilizing the management capabilities of OMV6. In this article, we will explore the Docker Compose plugin for OMV6, which simplifies the deployment and management of Docker containers.

Introduction to Docker and OMV6

Docker is an open-source platform that allows developers to automate the deployment and management of applications using containerization. Containers are lightweight and isolated environments that encapsulate an application and its dependencies, enabling consistent deployment across different environments. Docker Compose is a tool that simplifies the orchestration of multi-container applications, allowing users to define and manage complex application architectures with a single YAML file.

OMV6, on the other hand, is a feature-rich NAS solution based on Debian Linux. It provides a web-based interface for managing storage, sharing files, and running various services such as FTP, SMB/CIFS, NFS, and more. OMV6 is designed to be user-friendly and offers extensibility through plugins, allowing users to enhance its functionality based on their specific needs.

What is Docker Compose?

Docker Compose is a powerful tool that simplifies the management of multi-container applications. With Compose, you can define the services, networks, and volumes required for your application in a declarative YAML file. This file can be version-controlled and shared, making it easy to reproduce your application stack in different environments. Docker Compose also provides commands to start, stop, and manage containers as a single unit, making it ideal for development, testing, and production environments.

Benefits of Using Docker Compose

Using Docker Compose offers several advantages when deploying applications. Some of the key benefits include:

Simplified Configuration: Docker Compose allows you to define your application’s configuration in a YAML file, making it easy to manage and version control. This eliminates the need for complex shell scripts or manual configuration steps.
Orchestration and Dependency Management: With Docker Compose, you can define the relationships and dependencies between different containers. This ensures that containers are started and stopped in the correct order, simplifying the management of complex application architectures.
Portability: Docker Compose enables you to define your application stack once and deploy it consistently across different environments. This eliminates the “it works on my machine” problem and ensures that your application behaves consistently regardless of the underlying infrastructure.
Scalability: Docker Compose supports scaling individual services within your application stack. You can easily scale up or down based on demand, ensuring optimal resource utilization.
Isolation: Each container created by Docker Compose is isolated from other containers, providing an additional layer of security and preventing conflicts between different applications.

Overview of OMV6

OpenMediaVault 6 is a popular NAS solution that provides a user-friendly interface for managing storage and services. It offers a wide range of features, including disk management, RAID configuration, user management, and network services. OMV6 leverages the power of Debian Linux and integrates various open-source technologies to provide a reliable and extensible NAS solution.

Why Use a Compose Plugin for OMV6?

While OMV6 already provides a web-based interface for managing services, using Docker Compose offers additional flexibility and ease of use. By using the Docker Compose plugin for OMV6, users can leverage the benefits of Docker Compose while utilizing the management capabilities of OMV6. The plugin integrates seamlessly with the OMV6 interface, allowing users to define and manage multi-container applications without the need for complex command-line operations.

Installation of Docker Compose Plugin

To install the Docker Compose plugin for OMV6, follow these steps:

Log in to your OMV6 web interface.
Navigate to the “Plugins” section.
Search for “Docker Compose” in the available plugins.
Click on the “Install” button next to the Docker Compose plugin.
Wait for the installation to complete.
Once installed, the Docker Compose plugin will appear in the sidebar of the OMV6 interface.

Configuring Docker Compose Plugin for OMV6

After installing the Docker Compose plugin, you need to configure it to define your application stack. The configuration involves creating a Docker Compose YAML file and specifying the services, networks, and volumes required for your application. Follow these steps to configure the plugin:

Open the Docker Compose plugin from the OMV6 sidebar.
Click on the “Create” button to create a new Docker Compose stack.
Give your stack a name and provide a description (optional).
Define the services, networks, and volumes required for your application in the YAML editor.
Click on the “Save” button to save your Docker Compose stack.

Managing Docker Containers with Docker Compose Plugin

Once you have configured your Docker Compose stack, you can start managing your containers using the Docker Compose plugin. The plugin provides a user-friendly interface to start, stop, restart, and remove containers. Follow these steps to manage your containers:

Open the Docker Compose plugin from the OMV6 sidebar.
Select your Docker Compose stack from the list of available stacks.
Click on the “Start” button to start the containers defined in your stack.
Use the “Stop,” “Restart,” and “Remove” buttons to manage your containers as needed.

Advanced Features and Customization Options

The Docker Compose plugin for OMV6 offers various advanced features and customization options to enhance your application deployment process. Some of the key features include:

Environment Variables: You can define environment variables for your containers to configure their behavior.
Port Mapping: The plugin allows you to specify port mappings to expose container ports to the host system or other containers.
Volume Mounts: You can mount host directories or named volumes into your containers for persistent data storage.
Network Configuration: The plugin supports network configuration options to connect your containers with each other or external networks.
Health Checks: You can define health checks for your containers to monitor their status and automatically restart them if necessary.

Best Practices for Using Docker Compose Plugin with OMV6

To make the most out of the Docker Compose plugin for OMV6, consider the following best practices:

Version Control: Store your Docker Compose YAML file in a version control system to track changes and collaborate with others.
Separation of Concerns: Split your application into separate services to achieve better scalability and maintainability.
Optimized Resource Allocation: Adjust the resource limits for your containers based on their requirements to ensure optimal performance.
Regular Updates: Keep your Docker Compose stack and OMV6 installation up to date with the latest security patches and bug fixes.
Backup and Recovery: Implement a backup strategy for your data and configuration files to prevent data loss in case of system failures.

Troubleshooting Common Issues

While using the Docker Compose plugin for OMV6, you may encounter some common issues. Here are a few troubleshooting tips:

Check Logs: Review the logs of your containers to identify any error messages or warnings that may help diagnose the issue.
Verify Network Configuration: Ensure that your containers are connected to the correct networks and have the necessary network configurations.
Check Resource Constraints: Verify that your containers have sufficient resources allocated to them, such as CPU and memory limits.
Update Plugin and Docker: Make sure you have the latest version of the Docker Compose plugin and Docker engine installed.
Community Support: Reach out to the OMV6 and Docker communities for assistance if you are unable to resolve the issue on your own.

Security Considerations

When using Docker Compose with OMV6, it’s important to consider security best practices. Here are a few recommendations:

Isolate Containers: Ensure that each container has its own isolated environment and restrict network access as needed.
Secure Images: Only use trusted Docker images from reliable sources and regularly update them to include the latest security patches.
Restrict Permissions: Limit container permissions to only what is necessary for the application to function properly.
Monitor Container Activity: Implement monitoring and logging solutions to detect any abnormal behavior or security incidents.
Regularly Update: Keep your Docker Compose stack, OMV6, and host system up to date with the latest security updates.

Future Developments and Updates

The Docker Compose plugin for OMV6 is continuously evolving, and future updates are expected to bring new features and improvements. The development community actively contributes to the plugin’s development, addressing issues, and adding new functionalities. Stay tuned for updates and new releases to make the most out of the Docker Compose plugin for OMV6.

Conclusion

The Docker Compose plugin for OMV6 provides a user-friendly and efficient way to deploy and manage multi-container applications. By leveraging the power of Docker Compose, users can easily define complex application architectures and benefit from the portability, scalability, and isolation that Docker offers. With the integration into the OMV6 interface, managing containers becomes even more accessible, allowing users to focus on building and running their applications effectively.

Check out this: https://bit.ly/J_Umma

FAQs

Q1. Can I use Docker Compose with OMV6 to run any type of application? Yes, Docker Compose can be used to deploy various types of applications, including web applications, databases, and microservices. The flexibility of Docker Compose allows you to define the services and dependencies required for your specific application.

Q2. Is Docker Compose plugin for OMV6 suitable for production environments? Yes, Docker Compose is commonly used in production environments. However, it is essential to follow best practices, such as optimizing resource allocation, securing images, and regularly updating your stack, to ensure the stability and security of your application.

Q3. Can I use Docker Compose plugin for OMV6 to manage existing containers? Yes, you can use the Docker Compose plugin to manage existing containers by defining them in your Docker Compose YAML file. This allows you to centralize the management of your containers and easily scale or modify your application stack.

Q4. Does the Docker Compose plugin support orchestration features like scaling and load balancing? Yes, Docker Compose supports scaling individual services within your application stack. You can easily scale up or down based on demand, and Docker Compose will handle load balancing automatically.

Q5. Can I deploy Docker Compose stacks across multiple servers in a distributed environment? Yes, Docker Compose supports deploying stacks across multiple servers using Docker Swarm or Kubernetes. These technologies provide orchestration and management capabilities for distributed applications, allowing you to scale and manage containers across multiple nodes.
