How to Install LAMP (Linux, Apache, MySql & PHP) on Linux Ubuntu 20.04/22.04 AWS EC2
- Step 1 – Launching a Virtual Machine
- Step 2 – Selecting Virtual Machine Specs
- Step 3 – Connect Your AWS EC2 Instance from SSH
- Step 4 – Install Apache
- Step 5 – Install MySQL on AWS EC2 Ubuntu
- Step 6 – Install PHP Amazon EC2 Ubuntu
- Step 7 – Restart Apache Web Server
Step 1 – Launching a Virtual Machine

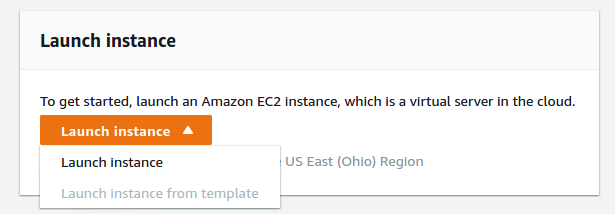

Log into the AWS EC2 Management Console, and click on the button Launch Instance.
Step 2 – Selecting Virtual Machine Specs

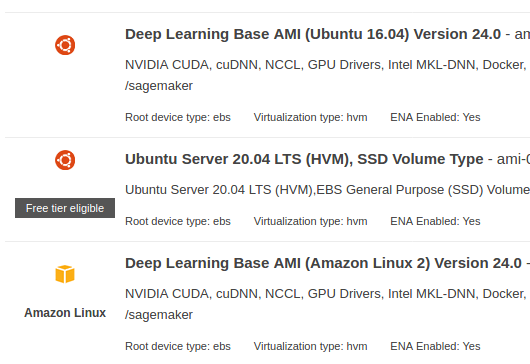

- Clicking Launch Instance will take us to a page where the specs for virtual machine can be chosen.Select Ubuntu Server 20.04 LTS(HVM), SSD Volume Type.

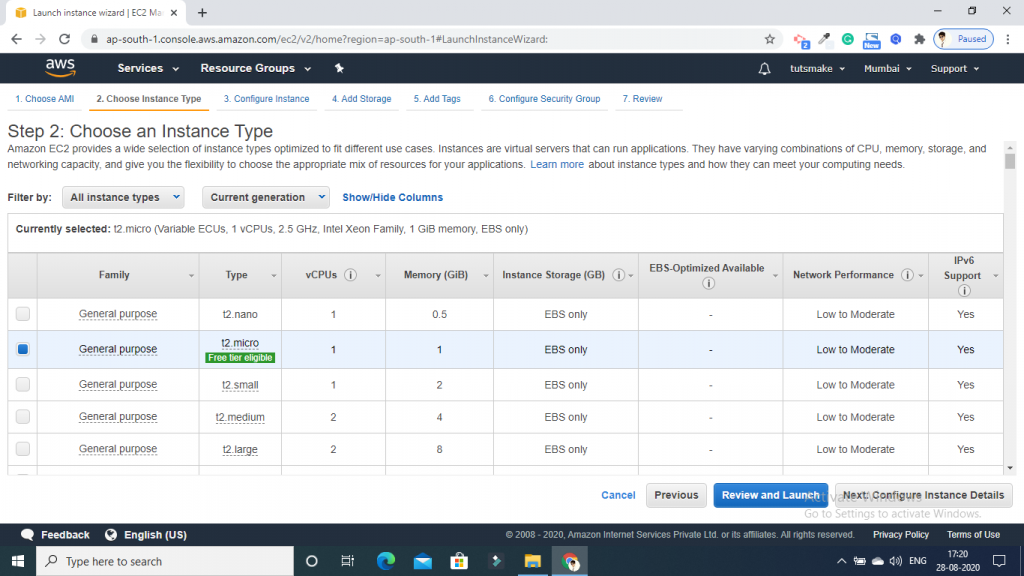

2. In the next screen we are going with t2.micro instance which is Free Tier Eligible.
3. For the section Configure Instance — go for default settings.
4. For the section Add Storage — go for default settings.
5. For the section Add Tags — go for default settings.

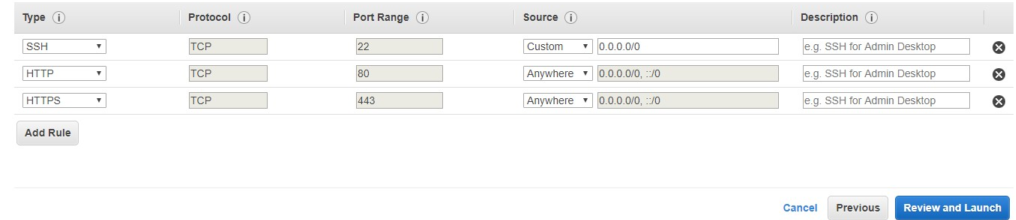

6. For the section Configure Security Group — add HTTP rule. HTTP is required for the web server that will be installed shortly.
7. We can also setup rules regarding IP addresses that can access the added protocols. For the tutorial, both the protocols are open to all IP addresses. If required, this can be edited later as well.
8. Clicking Review and Launch button in this page takes us to a page where we can review our instance settings. Click on the Launch button.

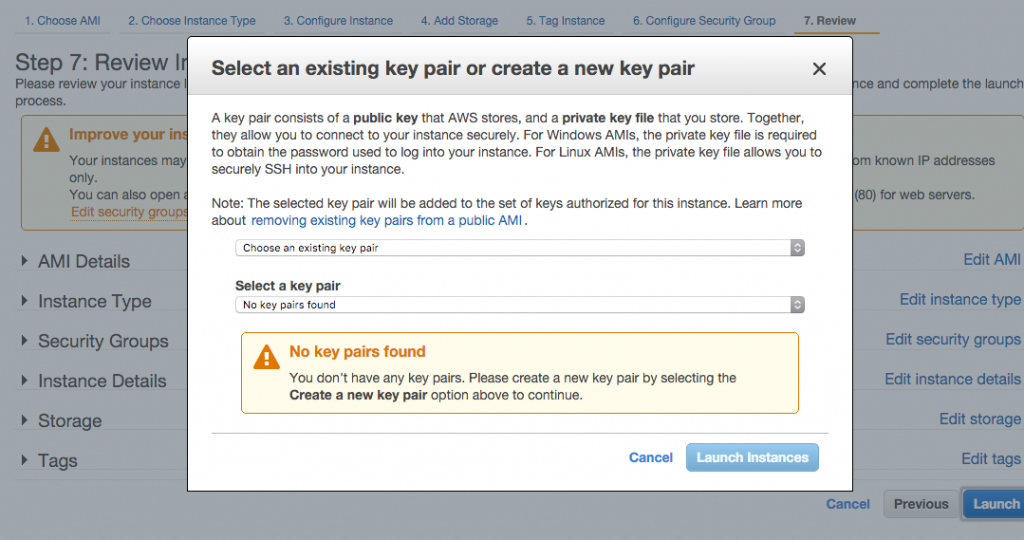

Creating and Downloading a Key Pair
After clicking on the Launch button, the next page will present with options for Key file. This key file is used to connect to the EC2 instance from our system.
Choose the option Create a new key pair and download the key file.
With the key file downloaded, the button for launching the instance became active. Clicking that button is the last step to launch the AWS instance.
With the successful launch of the instance, we will be redirected to the page which gives a success message that instance is being launched.
Click on the button View Instances redirects us to the EC2 management console. This will contain the public DNS & public IP address of instance which will be required in the later steps.
(From the next step on-wards we need to connect to the virtual machine from our system and execute commands on it through a terminal / shell)
Step 3 – Connect Your AWS EC2 Instance from SSH
First of all, you need to connect your aws ec2 instance from ssh. If you are new to connect aws ec2 instance with windows, ubuntu and mac system. So you can read this tutorial “How to Connect to ec2 Instance From Putty and SSH Terminal” to connect your ec2 instance from ssh.
Step 4 – Install Apache
In this step, you need to download the latest version of the software by first updating the local package index of Ubuntu repositories. So, start your ssh terminal and type the below given command:
In this step, use the below given command to install apache 2 into your ubuntu web server. So, open ssh terminal again and run this sudo command to install apache web server on aws ec2 instance:
Note that, on running installation of apache 2 web server on aws ec2 instance. The prompt box will be open with a “Y/N” option to continue the installation.
Please enter Y, after which the installation process will begin.
Verify the Apache installation
Installing Apache2 web server on your Ubuntu 20.04 EC2 instance is completed. So, open your ssh terminal and type the below command to check the Apache 2 is installed or not on our Ubuntu 20.04 aws EC2 instance:
Congratulation!!, You have successfully installed the Apache 2 web server on AWS ec2 instance.
If you want to access it from outside. So, you need to update firewall settings on your apache 2 web server on your Ubuntu 20.04 EC2 instance.
List the UFW application profiles
In this step, open your terminal ssh and type the following command to list such available firewall ufw applications,:
Then you will see a list of the application profiles:
OutputAvailable applications:
Apache
Apache Full
Apache Secure
OpenSSH
As indicated by the output, there are three profiles available for Apache:
- Apache: This profile opens only port 80 (normal, unencrypted web traffic)
- Apache Full: This profile opens both port 80 (normal, unencrypted web traffic) and port 443 (TLS/SSL encrypted traffic)
- Apache Secure: This profile opens only port 443 (TLS/SSL encrypted traffic)
Allow Apache Full on UFW
In this step, you need to allow Apache Full on UFW will open port 80 and 443 for network traffic, while providing maximum security to the server. So, use the below given UFW command to allow Apache Full through the following command:
sudo ufw allow 'Apache Full'
You can verify the change by typing:
The output will provide a list of allowed HTTP traffic:
OutputStatus: active
To Action From
-- ------ ----
OpenSSH ALLOW Anywhere
Apache ALLOW Anywhere
OpenSSH (v6) ALLOW Anywhere (v6)
Apache (v6) ALLOW Anywhere (v6)
Verify that the Apache service is running
sudo systemctl status apache2

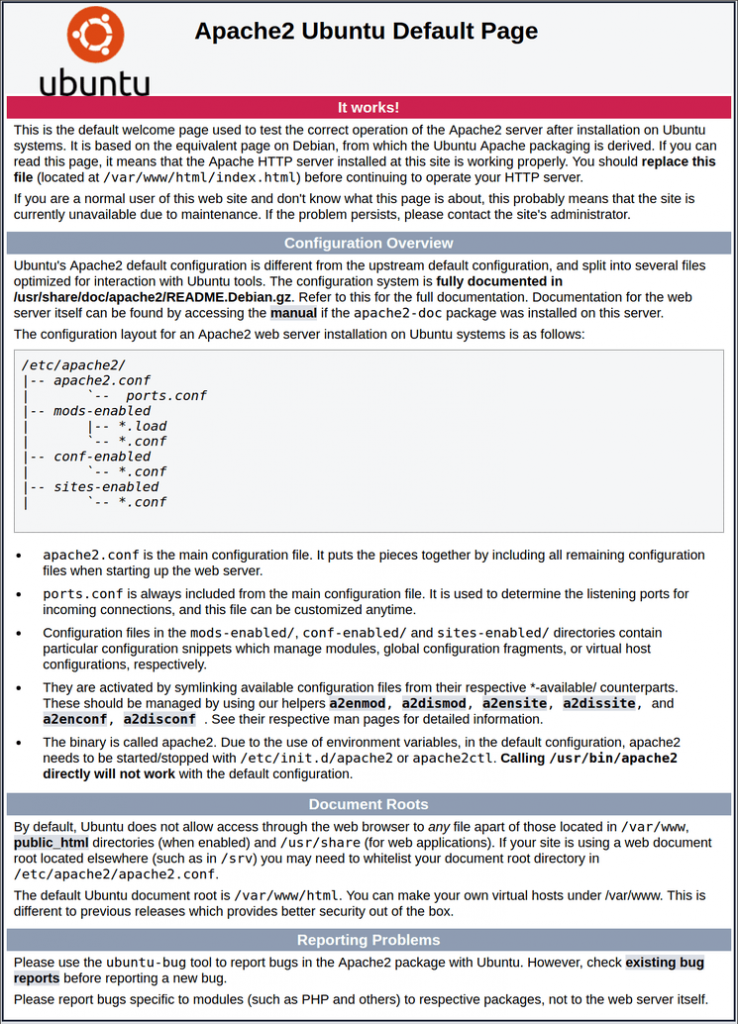

Finally, open your browser and type your AWS ec2 instance IP address. And, it will be looks like the Apache 2 page in the following picture:
Step 5 – Install MySQL on AWS EC2 Ubuntu
In this step, open your ssh terminal and type the following command to install MySql Server:
sudo apt-get install mysql-server
Then, secure MySql server by using the following command. So, you will need to set the root password of the database and secure it using the following command :
sudo mysql_secure_installation
When you run this command. Then the questions given below in the prompt will appear:
- You will be presented with a screen where MySQL asks whether you would like to activate the VALIDATE PASSWORD PLUGIN. For now, keeping things simple, type no.
- In the next type the root password of your choice. Confirm it again.
- In the next screen MySql will ask whether to remove anonymous users. Type yes
- Disallow root login remotely? Type No
- Remove test database and access to it? Type Yes
- Reload privilege tables now? Type Yes
- After the password has been set you can check the whether MySQL is working correctly by logging into the database with the command :
sudo mysql -u root -p
The above command will ask for the password. Enter the password what you enter while the securing the MySQL and hit enter will login into MySQL:
Now, Type exit on ssh terminal to get out of MySql:
exit
Step 4 – Install PHP Amazon EC2 Ubuntu
In this step, install PHP with it’s common extensions. So open your ssh terminal and type the following command:
sudo apt-get install php libapache2-mod-php php-mysql php-curl php-gd php-json php-zip php-mbstring
After successfully installed PHP on ubuntu amazon ec2 instance. Now, you need to configure dir.conf file by using the following sudo nano command:
sudo nano /etc/apache2/mods-enabled/dir.conf
It will look like this:
<IfModule mod_dir.c>
DirectoryIndex index.html index.cgi index.pl index.php index.xhtml index.htm
</IfModule>
Move the PHP index file to the first position after the DirectoryIndex specification, like this:
<IfModule mod_dir.c>
DirectoryIndex index.php index.html index.cgi index.pl index.xhtml index.htm
</IfModule>
Step 7 – Restart Apache Web Server
After successfully installed PHP MySQL and configure these on ubuntu amazon ec2 instance.
Finally, You need to restart Apache 2 server by using the following command:
sudo service apache2 restart
