Introduction
Secure Shell (SSH) port forwarding is a powerful tool that allows you to securely access remote computers and networks. It is commonly used to securely access a remote server or to tunnel a connection through an intermediate server. SSH port forwarding is a great way to securely access a remote computer or network, and it can be used for a variety of tasks. In this guide, we will discuss how to use SSH port forwarding and the different types of port forwarding available. We will also discuss some of the security considerations when using SSH port forwarding.
How to Use SSH Port Forwarding
SSH port forwarding, also known as SSH tunneling, is a method for sending traffic from a client machine port to a server port securely. It is commonly used to securely access a remote server or to securely transfer files between two machines.
1. Establish an SSH connection.
The first step in setting up an SSH port forwarding is to establish an SSH connection between the client and server machines. This can be done using an SSH client such as PuTTY or OpenSSH.
2. Configure the port forwarding.
Once the SSH connection is established, the port forwarding can be configured. This is done by specifying the local port, remote port, and the IP address of the remote server.
3. Test the port forwarding.
Once the port forwarding is configured, it can be tested by sending traffic from the local port to the remote port. This can be done using a tool such as netcat or telnet.
4. Use the port forwarding.
Once the port forwarding is tested and working, it can be used to securely access the remote server or to securely transfer files between two machines.
Introduction
SSH port forwarding is often referred to as SSH tunneling, and the two terms are used interchangeably.
The encrypted SSH ‘tunnel’ serves as a vessel to transfer assorted data and deliver it safely to the remote system. This method is regularly used to circumvent standard firewall security protocols. Port-forwarding is a component of most SSH client and server programs.
Find out how to use OpenSSH for Linux, and the Windows PuTTY client to enable local, remote, or dynamic SSH port forwarding.
Prerequisites
- An SSH client/server of your choice (OpenSSH or PuTTY)
- A reachable IP address or name of the remote/local server
How to Use Local Port Forwarding
Valuable network resources do not generally allow remote SSH access. This would be a severe limitation in a modern distributed environment. Organizations usually solve this issue by setting up an intermediary SSH ‘jump’ server to accept remote SSH connections.
Your local SSH client establishes a connection with the remote SSH server. The connection is then forwarded to a resource within the trusted internal network. SSH connections are established, and security efforts can concentrate on the intermediary SSH server rather than individual resources in a network.
Local Port Forwarding with OpenSSH
To use SSH tunneling in Linux, you need to provide your client with the source and destination port numbers, as well as the location of the destination server. The location can either be an IP address or a hostname.
The basic syntax for a local port forward command is straightforward:
ssh -L local_port:destination_server_ip:remote_port ssh_server_hostname⦁ ssh – Starts the SSH client program on the local machine and establishes a secure connection to the remote SSH server.
⦁ -L local_port:destination_server_ip:remote_port – The local port on the local client is being forwarded to the port of the destination remote server.
⦁ ssh_server_hostname – This element of the syntax represents the hostname or IP address of the remote SSH server.
A practical example of an SSH port forwarding command would take the following form:
ssh –L 5901:188.17.0.5:4492 [email protected]In the example above, all traffic sent to port 5901 on your local host is being forwarded to port 4492 on the remote server located at 188.17.0.5.

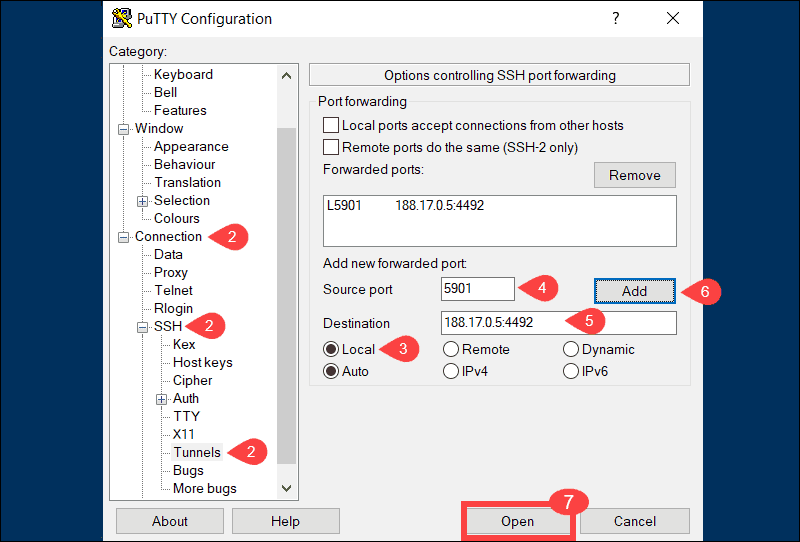

Local Port Forwarding with PuTTY
PuTTY is a user-friendly SSH client for Windows. Configure local SSH tunneling by following these steps:

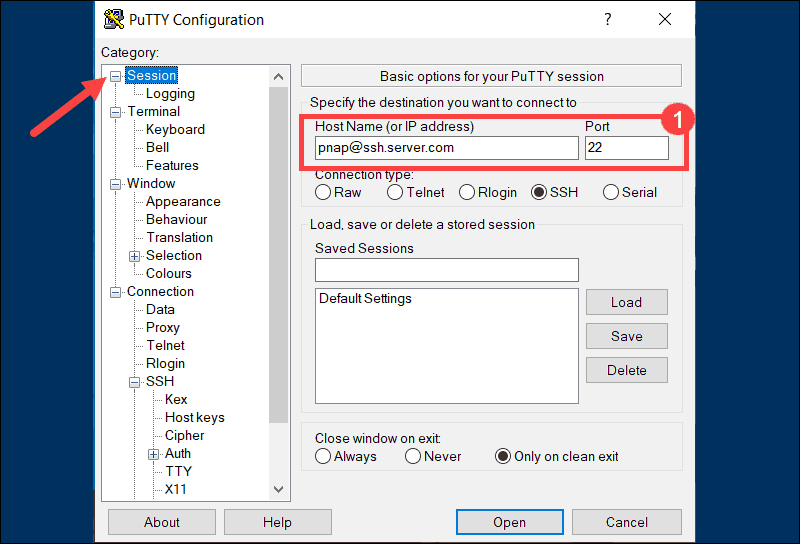

- When you start the PuTTY application, the Sessions screen allows you to enter the hostname or IP address and port number of the destination SSH server (Example: [email protected] and port number 22).
- Use the Category list on the left to navigate to Connection > SSH > Tunnels.
- Select Local to define the type of SSH port forward.
- Enter your local port number in the Source port field.
- Type the destination address and port number in the Destination field. Use the following format: destination_server_ip:remote_port.
(e.g., Source port: 5901, Destination: 188.17.0.5:4492) - Once you verify that the information you entered is correct, select Add.
- The parameters for the connection are now all set. The Open option initiates the local SSH port-forward.
How to Use Remote Port Forwarding
The purpose of remote forwarding is to allow a remote server to access resources on your local machine. Remote forwarding represents an inversion of the local forwarding process we explored previously.
Remote Port Forwarding with OpenSSH
The basic syntax for a remote port forward command is as follows:
ssh -R remote_port:localhost:local_port ssh_server_hostnameIn this example, we have instructed the remote server ssh.server.com to forward any connections directed at port 8080 to the local resource listening on port 5534.
ssh –R 8080:localhost:5534 [email protected]Users with access to the SSH server are now able to access resources on your local machine.

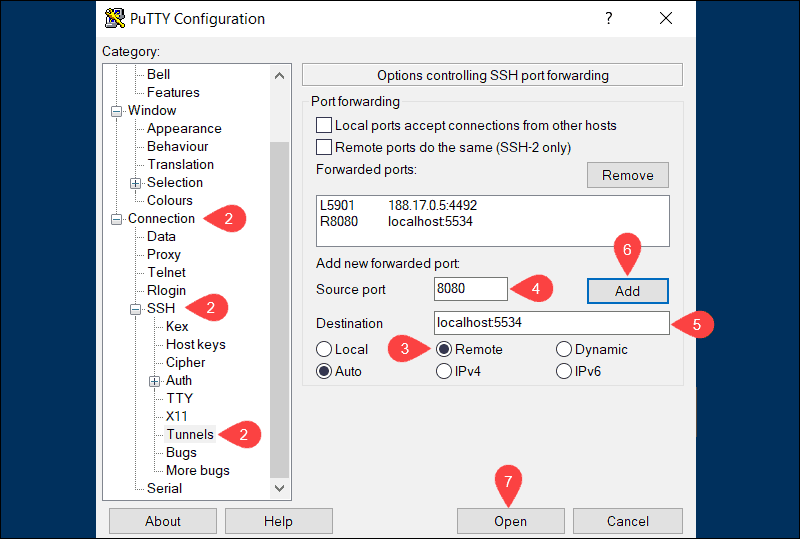

Remote Port Forwarding with PuTTY
- Start the PuTTY application. The initial Sessions screen allows you to specify the IP address and port number of the destination SSH server.
- Use the Category list on the left to navigate to Connection > SSH > Tunnels.
- Select Remote to define the type of SSH port forward.
- Enter the remote port number in the Source port field (e.g., 8080).
- Type the destination address and port number in the Destination field using the following format localhost:local_port (e.g., localhost:5534).
- Once you verify that the information you entered is correct, click Add.
- Select Open to establish a remote SSH port-forward.
In the example above, users and applications can connect to port 8080 on the remote SSH server and then access the local machine using port 5534.
How To Use Dynamic Port Forwarding
Dynamic port forwarding is not as well-known as the previous two options. Most users find it easier to use local port forwarding to achieve similar results. Dynamic port forwarding can provide more flexibility as you no longer need to use a predefined remote port and server.
Note: When using dynamic port forwarding, it’s necessary to configure individual programs to use the SOCKS proxy server.
Dynamic Port Forwarding with OpenSSH
By using the ssh command and the –D argument, you can use your SSH client to create a SOCKS proxy on your local machine.:
ssh –D local_port ssh_server_hostnameThe following command opens a SOCKS proxy at port 5534 on your local machine:
ssh –D 5534 [email protected]You are now able to configure a local resource, like a browser, to use port 5534. All traffic originating from that resource is directed through the SSH connections established for the defined port.

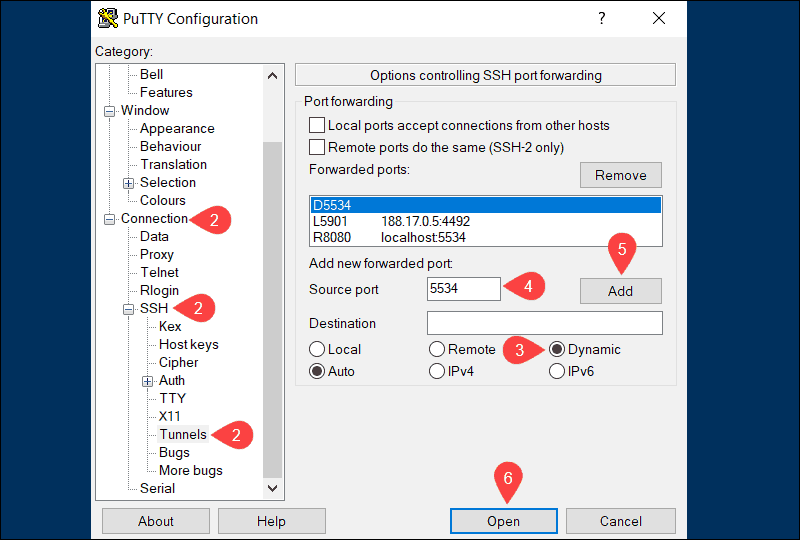

Dynamic Port Forwarding with PuTTY
- Enter the hostname or IP address and port number of the destination SSH server on the main PuTTY Sessions screen.
- Use the Category list to navigate to Connection > SSH > Tunnels.
- Select Dynamic to define the type of SSH port forward.
- Enter the dynamic port number in the Source port field (e.g., 5534). The SOCKS proxy server on your local machine is going to use this port to dynamically forward traffic.
- Once you are sure that the information you entered is correct, click Add.
- The parameters for the connection are now all set. Select the Open option to start dynamic SSH port-forwarding.
For dynamic forwarding to work, you would need to configure and enable each application for the SOCKS proxy server.
Note: If you are working with Kubernetes, you might find our guide about kubectl port-forward useful.
Conclusion
This tutorial presented three different types of SSH port forwarding, the commands you need to use, and how to implement them on your system.
SSH port forwarding is a powerful feature, and it needs to be carefully administered. High-security standards should be maintained throughout the entire process.
How to Use SSH Port Forwarding
SSH port forwarding, also known as SSH tunneling, is a method for sending traffic from a client machine port to a server port securely. It is commonly used to securely access a remote server or to securely transfer files between two machines. In this article, we will discuss how to use SSH port forwarding.
What is SSH Port Forwarding?
SSH port forwarding is a technique used to securely access a remote server or to securely transfer files between two machines. It works by creating a secure tunnel between the client and the server. All traffic sent through the tunnel is encrypted, so it is secure from eavesdropping. The tunnel is created by forwarding a port on the client machine to a port on the server.
How to Set Up SSH Port Forwarding
Setting up SSH port forwarding is relatively simple. First, you need to make sure that the SSH server is running on the server machine. Then, you need to configure the client machine to forward a port to the server. This can be done using the ssh command line utility. The syntax for the command is as follows:
ssh -L [local port]:[server address]:[server port] [username]@[server address]
The local port is the port on the client machine that will be forwarded to the server. The server address is the IP address or hostname of the server. The server port is the port on the server that will be accessed. The username is the username of the user on the server. Once the command is executed, the port will be forwarded and the connection will be established.
Conclusion
SSH port forwarding is a powerful tool for securely accessing a remote server or transferring files between two machines. It is relatively easy to set up and can be done using the ssh command line utility. With SSH port forwarding, you can securely access a remote server or transfer files without having to worry about eavesdropping.
