More and more devices can be used with Bluetooth, and interestingly, it’s not that complicated to use these Bluetooth devices with a Raspberry Pi (even without a desktop environment). So, if you have a Bluetooth mouse or speaker you’d like to use with your Pi, keep reading, and I’ll show you everything.

On Raspberry Pi OS with Desktop, there is a tool to configure Bluetooth devices in the top-right corner, and most distributions have similar options. From a terminal, the tool “bluetoothctl” can be used to scan, pair and configure Bluetooth devices in command lines.

Let’s start with a desktop environment, using the tool on Raspberry Pi OS with Desktop, and I’ll then give you the commands to do it from a terminal (or Lite edition). I’ll finish with a few examples of devices you can use to improve your Pi experience.

If you’re looking to quickly progress on Raspberry Pi, you can check out my e-book here. It’s a 30-day challenge where you learn one new thing every day until you become a Raspberry Pi expert. The first third of the book teaches you the basics, but the following chapters include projects you can try on your own.

Set up Bluetooth with the GUI

If you use the default Raspberry Pi OS environment (PiXeL), there is a Bluetooth icon in the top-right corner, near the clock, that can be used to enable or disable the Bluetooth adapter and pair new devices.

Turn on Bluetooth

By default, Bluetooth is enabled on a fresh installation of Raspberry Pi OS with Desktop, so you can probably skip this step.

But if for any reason the Bluetooth is disabled on your Pi (grayed icon), click on it and select “Turn On Bluetooth” in the dropdown menu. It looks like this:

The Bluetooth is now enabled, and you can move on to detecting your Bluetooth devices.

Pair a new device

The Raspberry Pi will only detect Bluetooth devices in pairing mode. Refer to your device’s user guide to learn how to do this. Generally, there is a Bluetooth button on it that you need to press once or for a few seconds to make it discoverable.

Also, some devices can’t be paired to more than one device, so you may need to disconnect it from your other computer, for example. As it’s different with all accessories, it’s better to check the official documentation.

• Click on the Bluetooth icon in the top-right corner.
• Click on “Add device…”

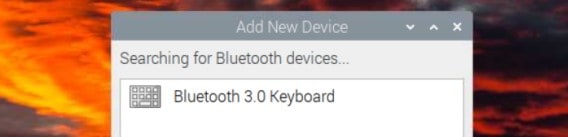

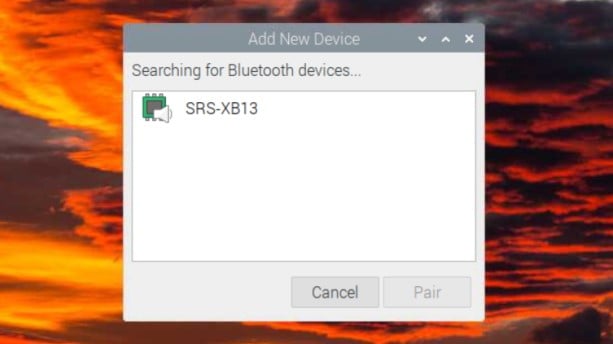

• The Raspberry Pi will start listing all of the detected devices in a window. It should look like this:

• Click on the one you want to associate, then click “Pair”.

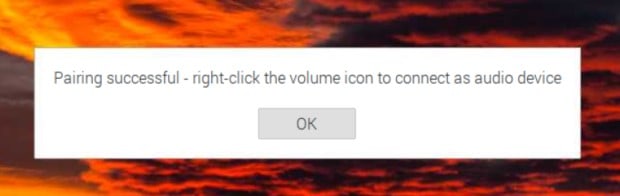

• A few seconds later, you’ll get a confirmation message that the pairing was successful:


Once the device is connected, there might be additional steps to configure it. This will depend on the type of device. I’ll give you more details at the end of this article (Bluetooth usage examples).

For example, a mouse or keyboard should work directly, while a speaker or phone will require additional configuration steps.

Unpair a connected device

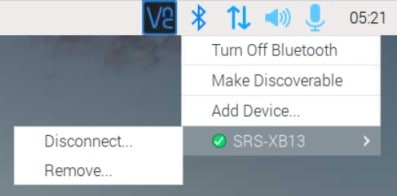

Once a device is paired with the Raspberry Pi, it will be listed in the dropdown menu when you click on the Bluetooth icon. You can find at least two actions in this menu: disconnect (remove temporarily) and remove (forget this device, unpair completely).

Set up Bluetooth using the terminal

Whether you use SSH, a server distribution without GUI or want to do the same thing from a terminal, it’s possible.

In command lines, the main tool to use is “bluetoothctl”. It opens a different prompt, where you can type specific actions to manage everything related to your Bluetooth adapter and devices.

Turn on Bluetooth in the command lines

Even on Raspberry Pi OS Lite, Bluetooth is enabled by default on a fresh installation. I’ll give you the instructions just in case you use another distribution or disabled it previously, but in theory, you won’t have to do this:

• Start the main tool with:
  bluetoothctl
• Enable Bluetooth:
  power on
• And to close the tool:
  exit
  You’ll most likely continue with the pairing procedure first, but at least you know how to quit :-).

That’s it, Bluetooth is enabled (even if it was already on your system), and you can move to the next step.

Pair a new Bluetooth device from the terminal

Theory

The procedure has almost the same steps as with a GUI:

• Put the device in pairing mode.
• Search for devices.
• Pair with the one you want to associate it with.
• Connect to it if you want to use it directly.
  This step is automatic with a GUI, but there is an extra command in a terminal.

As mentioned earlier, we’ll do everything with “bluetoothctl”.
There are many commands you can use, but luckily they are pretty intuitive (with logical names and not that many options).

Here are the most important ones to know:

• power on – Turns on Bluetooth.
• power off – Turns off Bluetooth.
• scan on – Starts scanning for Bluetooth devices.
• scan off – Stops scanning for Bluetooth devices.
• pair <address> – Pairs with a Bluetooth device.
• remove <address> – Unpair a Bluetooth device.
• connect <address> – Connects to a Bluetooth device.
• disconnect <address> – Disconnects from a Bluetooth device.
• devices – List paired devices.

Use help to see all the options available, but these should be enough in most cases.

Example

Let’s take a concrete example. I have a Bluetooth keyboard I want to associate with Raspberry Pi OS Lite (I’m doing this via SSH for my comfort, but it doesn’t change anything).

Here are the main steps to pair a keyboard to Raspberry Pi OS Lite:

That’s it, my keyboard works directly and I didn’t have any extra steps to configure it. But as mentioned for the GUI procedure, depending on the type of device, additional configuration might be required (change the default audio output for example).

Bluetooth usage examples on Raspberry Pi

You now know how to pair any Bluetooth device with your Raspberry Pi, here are a few ideas on how you can use Bluetooth devices to improve your experience with your Pi.

Audio

I’m a bit picky about sound quality, and I can’t bear the sound from the monitor’s speakers when I listen to music, so I don’t use the HDMI output for sound. You can plug fancy speakers into the Jack port, but I generally find using Bluetooth speakers is the easiest way.

I tried it with two of my Bluetooth speakers, and it worked pretty well, so I recommend testing it, especially if you use your Pi for desktop usage, media center or as a Spotify player.

There is an extra step after pairing the speaker, you need to click on the sound icon and choose the new device in the dropdown menu, it looks like this:

You can then go to “Device Profiles” to adjust the settings if needed (volume, etc.), but it isn’t mandatory.

If you don’t have a GUI, it’s the same thing, but remember that some dependencies may be required (ex: audio packages to use a Bluetooth speaker).

Mouse/keyboard

Another great way to take advantage of the Bluetooth feature is to use a wireless mouse and keyboard with your Raspberry Pi. In my comparisons of the main keyboards for Raspberry Pi, I had a great one that works via USB or Bluetooth (so you can still do the installation with the cable).

I tested it for this article, and it worked directly, just press the Bluetooth button and follow the instructions given above.

If needed, you can then go to “Preferences” > “Mouse & keyboard settings” to configure advanced options (mouse speed, for example).

Game controller

If you are into retro-gaming and play Retropie on your Raspberry Pi, keep in mind that it’s definitely possible to use a wireless controller with it, even in Bluetooth (like the PS4 controllers).

I have several tutorials about this on this website, I’ll let you check them for more detail if you are interested:

Connect to the Pi from another computer

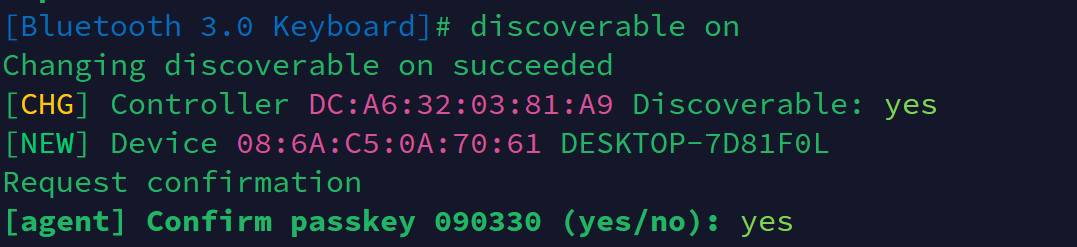

Side note: If for any reason you need to connect to your Raspberry Pi from another device, you need to make it discoverable first. And you’ll probably have to use a PIN code to confirm the connection.
discoverable on


You also have the option from the desktop interface (“Make discoverable” in the dropdown menu when you click the Bluetooth icon).

I connected it to my laptop, but I didn’t have much success in terms of applications I could use with this connection, so I don’t know how useful this can be (I guess you should be able to transfer files, but it didn’t work for me).
