How to Fix Cloudflare’s “Error 520: Web Server Is Returning an Unknown Error”

[ad_1]

When your site’s visitors see error 520 in their browser, it means Cloudflare is sending the message because your server returned an empty, unknown, or unexpected response.

The 520 error can be approached through troubleshooting first to find the cause and then fixed following these steps.

Let’s jump right in:

Troubleshooting Error 520

Since the 520 error is coming up because of an issue on your server, you can troubleshoot the issue by looking in your error log.

Error 520
An example of error 520 for a website.

Disable Cloudflare

Before you start troubleshooting, it’s necessary to disable Cloudflare. This helps isolate the problem by ensuring the issue can be replicated without Cloudflare being a factor.

Step 1

Start by logging into Cloudflare. Then, find your site on the list and click on it.

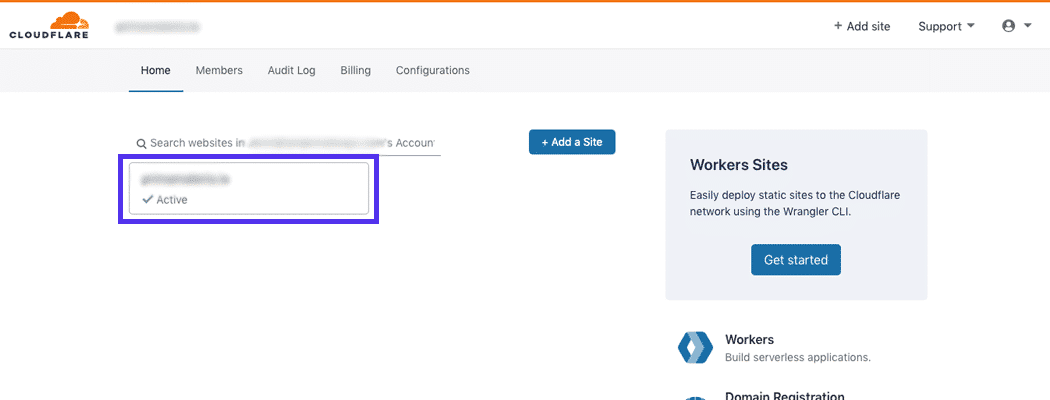

The Cloudflare dashboard
Click on your listed site.

Step 2

Next, click on the DNS tab, then on the orange cloud under the Proxy status section in the table. You’ll know Cloudflare was disabled because the cloud will have turned gray.

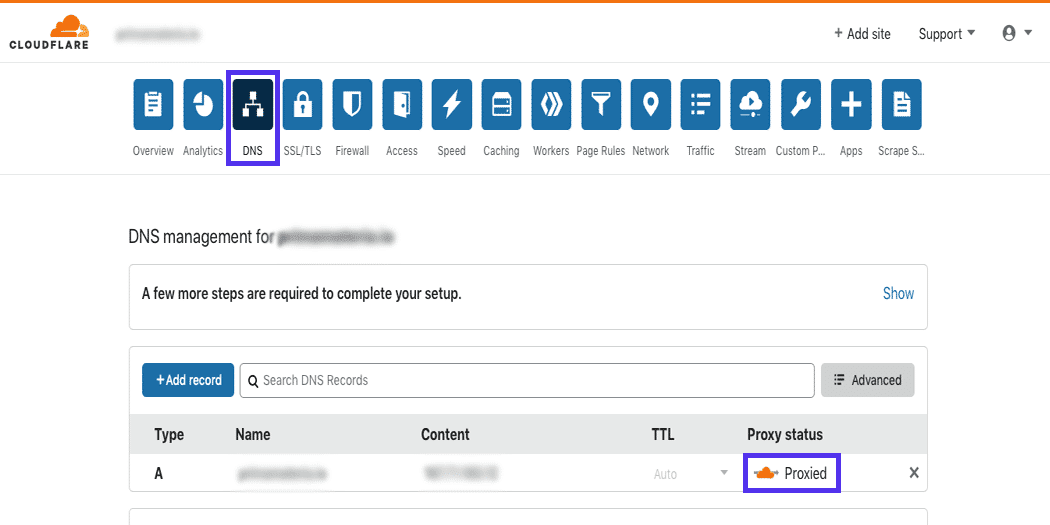

The DNS tab
Click on the orange cloud to disable Cloudflare.

Pause Cloudflare

Alternatively, you can choose to pause Cloudflare after logging in.

Step 1

Click on your connected site from the list.

The Cloudflare dashboard
Click on your site from the list after logging in.

Step 2

Then, scroll down until you see the Advanced Actions section in the sidebar. Click on the Pause Cloudflare on Site link.

The bottom on the Cloudflare dashboard page
Click on the link to pause Cloudflare.

Step 3

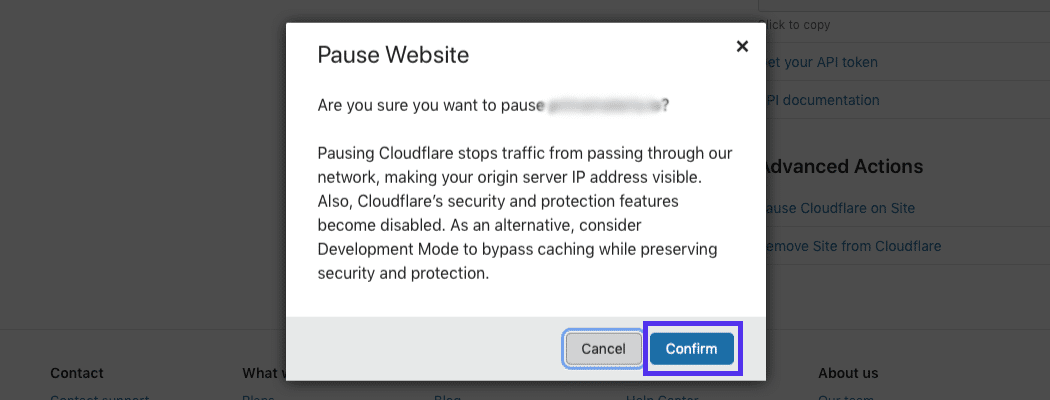

A pop-up will be displayed on the page that asks you to confirm you want to pause Cloudflare. Go ahead and click the Confirm button.

The pop-up to confirm pausing Cloudflare
Click Confirm to pause Cloudflare.

Go into Development Mode

If you don’t want to pause or disable Cloudflare, you can keep it running, but place it in development mode so you can still troubleshoot error 520.

Step 1

After logging into Cloudflare, click the Caching tab toward the top of the page.

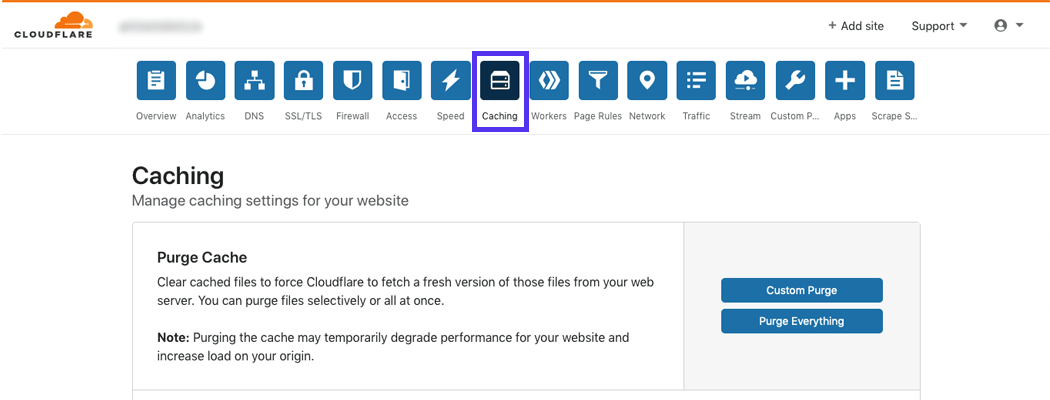

Cloudflare’s Caching page
Go to the Caching tab.

Step2

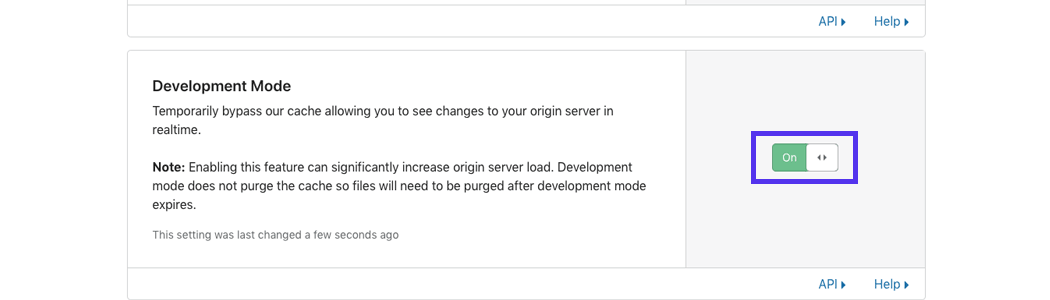

Next, scroll down to the Development Mode section and click the Off toggle button. It should now say “On.”

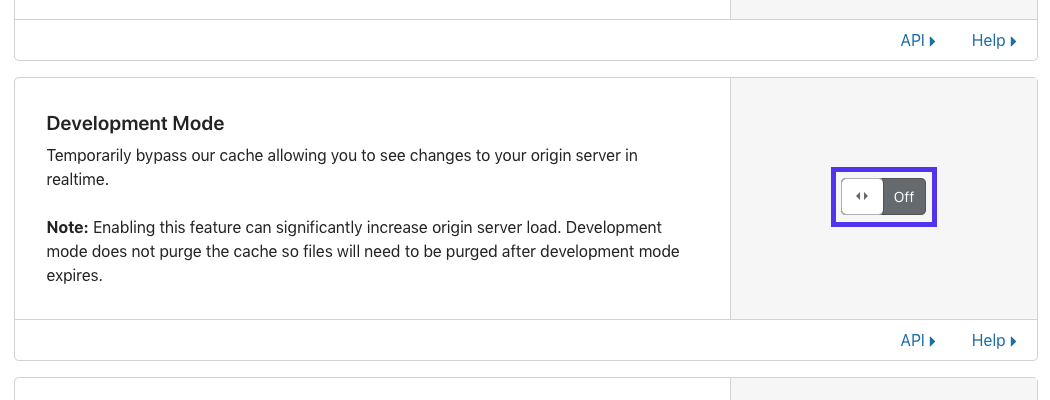

The Caching page
Turn on development mode by clicking the toggle button.

Checking Your Server’s Error Logs

Now that you have disabled, paused or put Cloudflare into development mode, you can troubleshoot error 520 by checking your server’s error logs.

Finding your error log can vary between hosts so check with yours if you’re unsure of where to find your error logs.

If your hosting provider uses cPanel, you can follow the steps below.

Step 1

Log into cPanel and in the dashboard, go to the Metrics section. Then, click the Errors button.

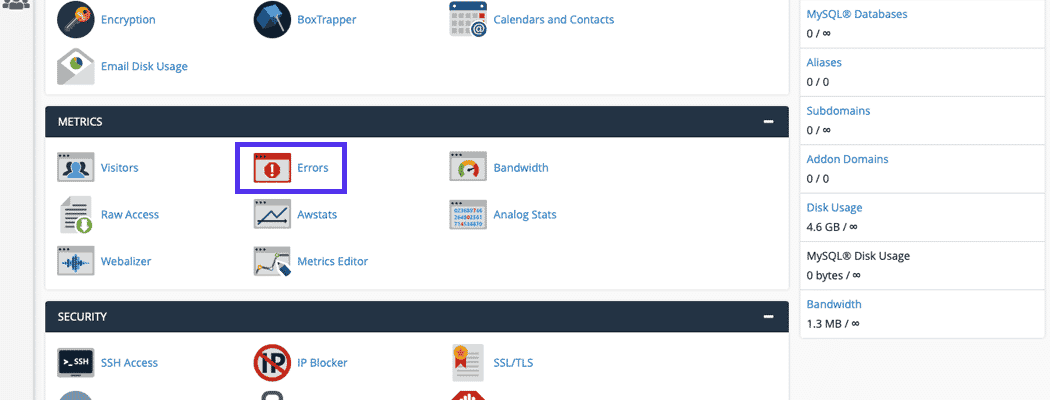

The cPanel dashboard
Click the Errors button under Metrics.

Step 2

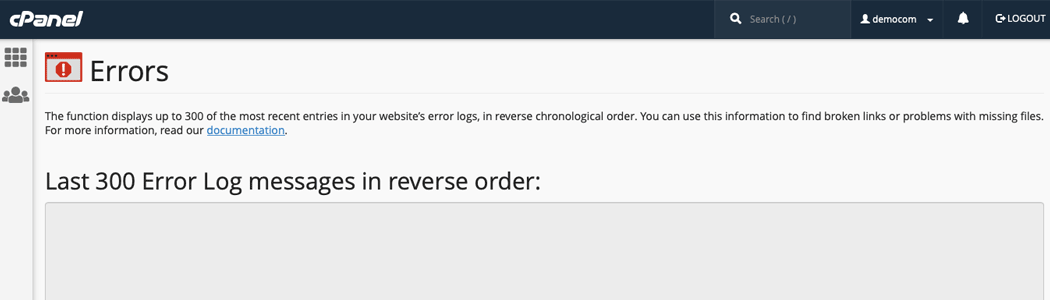

The error log page displays errors in reverse chronological order as well as up to 300 of the most recent messages. The error log may display more messages if you or your host adjusted the settings.

The error log in cPanel
View cPanel’s error log to troubleshoot error 520.

Checking Your Log for Error 520 Using MyKinsta

If you host your WordPress site with Kinsta, you can follow the steps below to check your error log.

Step 1

Log into MyKinsta and click on Sites in the menu on the left. Then, select the site you want to troubleshoot from the list on the page.

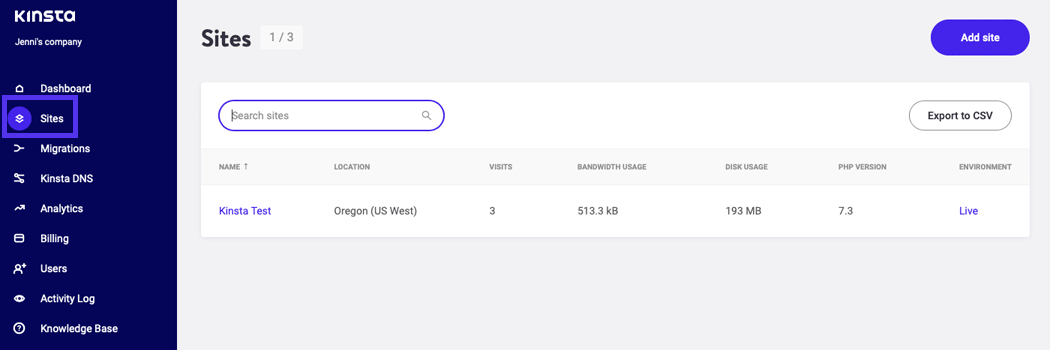

The MyKinsta dashboard
Click on Sites in the menu of MyKinsta.

Step 2

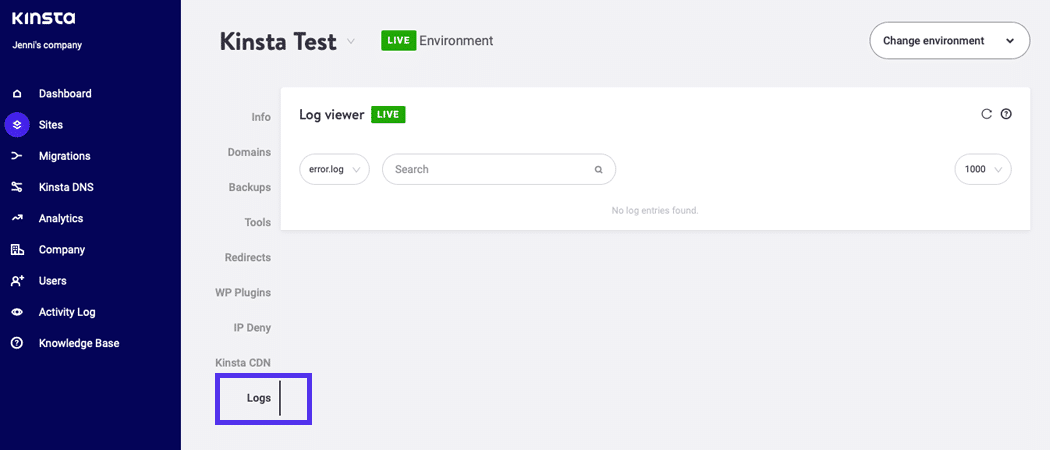

Click on the Logs tab. By default, the error log is displayed. If you don’t see anything listed, it’s due to the fact that no errors on your site have occurred.

The Logs tab
If there are any errors, they’re displayed on the Logs tab.

How to Interpret the Error Log

Each message in an error log has a structure. If you understand it, you can interpret the error messages that come up.

[Fri Oct 11 17:00:30 2019] [error] [client 123.4.56.7] error description: /path/to/file/with/error

The date and time of the message are listed first followed by the LogLevel directive which tells you about the severity level of the message.

Next up is the IP address of the client. This is who made the issue appear.

Finally, the actual message is displayed and may contain a path to the affected file.

Here are the LogLevel severity levels which could be listed in your error log’s messages:

  • Emerg – This lets you know the issue is an emergency and the server is unavailable.
  • Alert – Action should be taken immediately if you see this level.
  • Crit – This denotes a critical condition.
  • Error – This means an error has occurred.
  • Warn – A message with this level is a warning about an issue that requires your attention, but isn’t critical.
  • Notice – This means your server is normal, but there are significant details about the condition of your server that is available.
  • Info – General information is available with this level.
  • Debug – These messages contain details when you have debugging enabled.

Use a cURL Command to Troubleshoot Error 520

You can also use a cURL command to troubleshoot error 520 by testing against the origin server.

curl -vso /dev/null --user-agent "Mozilla 5.0" -H "Host: your-site.com" http://123.45.6.789/wp-login.php

Be sure to change “you-site.com” to your actual domain. You also need to update “123.45.6.789” with your site’s IP address. If you changed your login page, you should also change the “wp-login.php” part.

A successful response header would look similar to the example below:

* Hostname was NOT found in DNS cache
*   Trying 123.45.6.789...
* Connected to 123.45.6.789 (123.45.6.789) port 80 (#0)
> GET /login HTTP/1.1
> User-Agent: Mozilla 5.0
> Accept: */*
> Host: your-site.com
>
< HTTP/1.1 200 OK
< Content-Type: text/html
< Date: Day, DD, Month Year Hour:Minute:Second Timezone
{ [12345 bytes data]
* Connection #0 to host 123.45.6.789 left intact

If you see something like this, it means everything’s okay and the site was reached without an error 520 response.

On the other hand, if you see a response header similar to the example below, it means the 520 error has occurred when Cloudflare was active:

* Hostname was NOT found in DNS cache
*   Trying 123.45.6.789...
* Connected to 123.45.6.789 (123.45.6.789) port 80 (#0)
> GET /login HTTP/1.1
> User-Agent: Mozilla 5.0
> Accept: */*
> Host: your-site.com
>
* Empty reply from server
* Connection #0 to host 123.45.6.789 left intact

How to Generate a HAR File

A HAR is an HTTP archive file. It contains archives for requests that are going to the server of origin and also through Cloudflare.

It can help you with troubleshooting because it compares response headers coming from the origin server and Cloudflare when it’s used as a proxy.

It’s also used to confirm that the headers are too large if that’s why error 520 has appeared.

You can create a HAR file with your browser with the steps below:

Chrome

Step 1

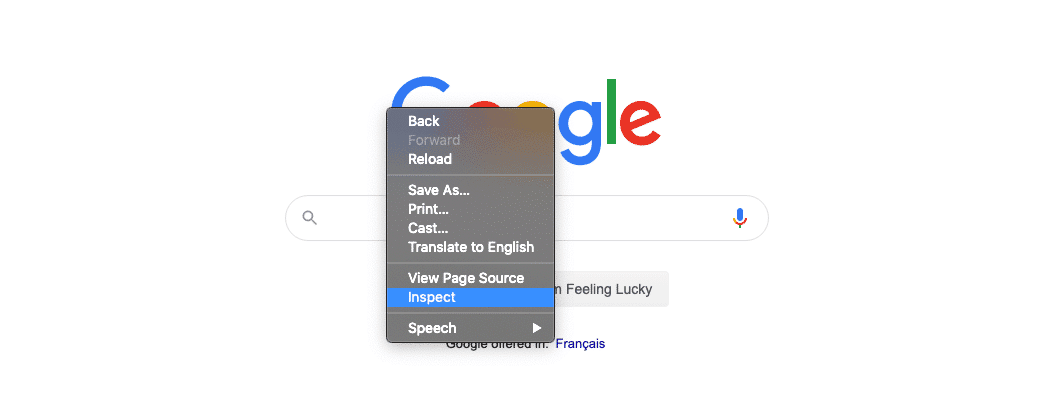

Open your browser and right-click on the page. Then, select Inspect.

The page has been right-clicked in Chrome.
Right-click in Chrome and choose Inspect.
Step 2

Once the panel has opened, click the Network tab and make sure there’s a red circle button toward the top, left-hand side of the panel. If it’s gray, click it.

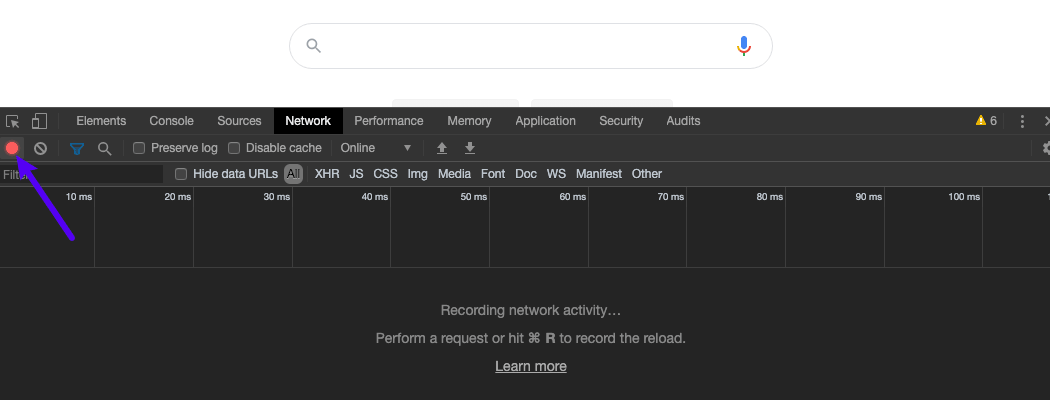

The Chrome developer tool
Be sure the record button is red on the Network tab.
Step 3

Check the Preserve log option next to the record button and then click the clear button.

The Chrome developer tool
Select the option to preserve the log and then click to clear previous messages.
Step 4

Load the page that’s bringing up error 520. Then, right-click anywhere in the messages area of the Chrome developer tool.

Select the Save as HAR with Content and save the file to your computer.

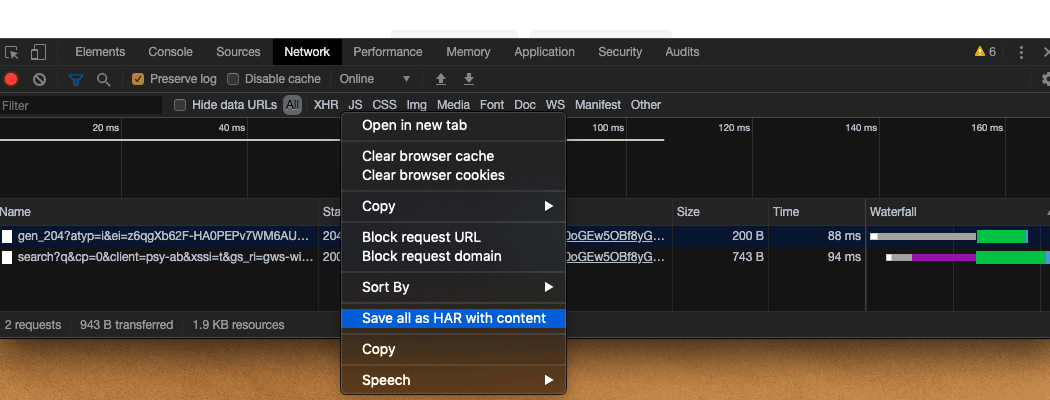

A message in Chrome’s developer tool has been right-clicked.
Save the HAR file to your computer.

Firefox

Step 1

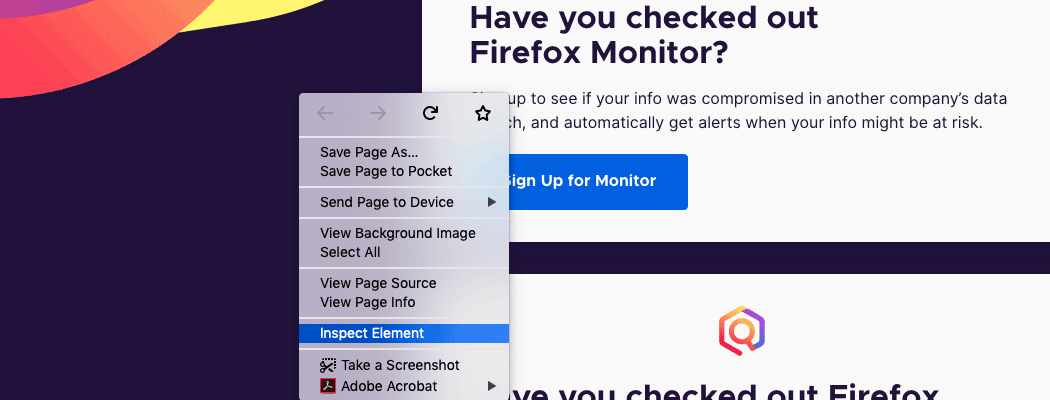

Open Firefox and right-click anywhere on the page. Then, select Inspect Element.

A page has been right-clicked in Firefox.
Select Inspect Element after right-clicking on the page.
Step 2

Go to the Network tab and visit the page that has the 520 error coming up. Right-click on messages in the panel and select the Save All as HAR option.

Save the file to your computer.

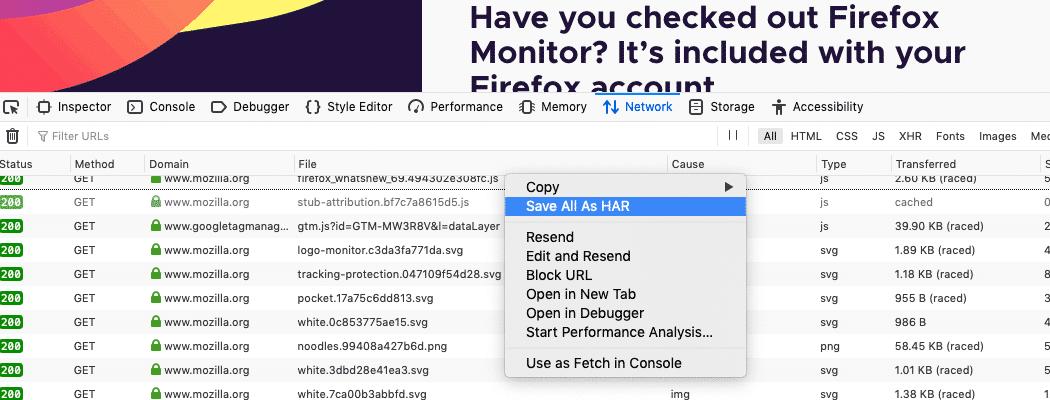

The Firefox developer tool Network tab
Right-click and choose to save the HAR file.

Edge

Step 1

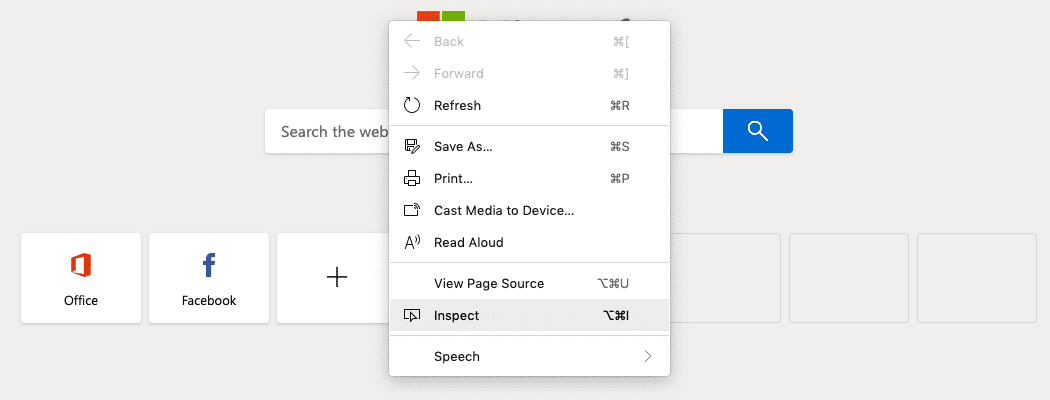

Open the Edge browser and right-click the page. Select Inspect from the list.

The Edge browser
Select Inspect after right-clicking in the browser.
Step 2

Go to the Network tab and ensure the circular record button is red. If it’s not, click it. Check the Preserve log option, then the icon to clear the current messages.

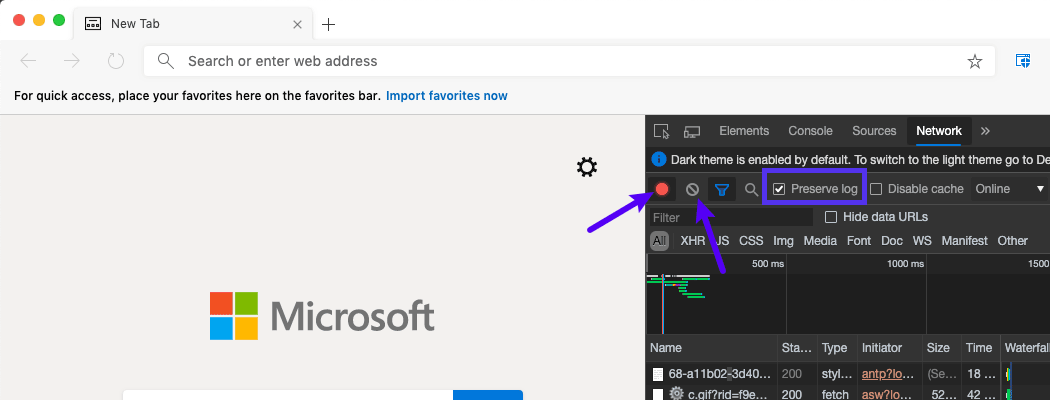

The Network tab of the developer tool
Click to preserve the log and clear older messages.
Step 3

Go to the page where you’re experiencing error 520. Then, right-click on the messages in the developer tool panel and select the Save all as HAR with content option.

Save the file to your computer.

Safari

Step 1

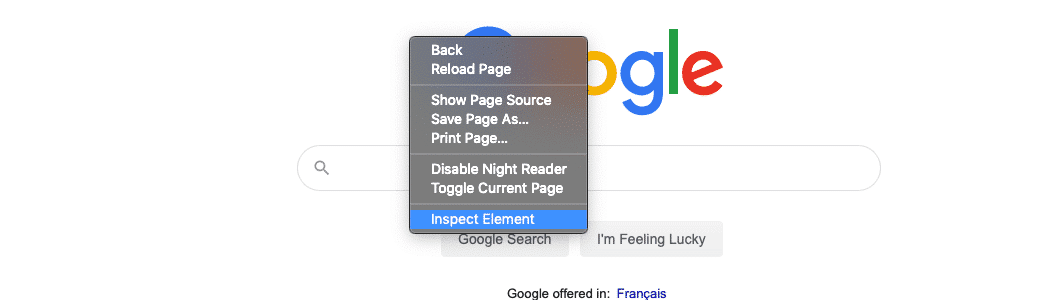

Open Safari and right-click on the page for Windows or press CMD on your keyboard and click for Mac. Select Inspect Element from the list.

The Safari browser
Choose the Inspect Element option after right-clicking on the page.
Step 2

Go to the Network tab. Check the Preserve Log option, then go to the page with the error 520 issue.

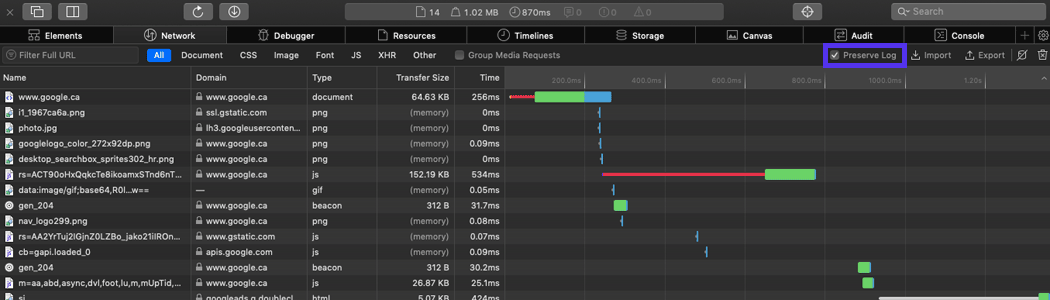

The Safari developer tool panel
Check the option to preserve the log on the Network tab.

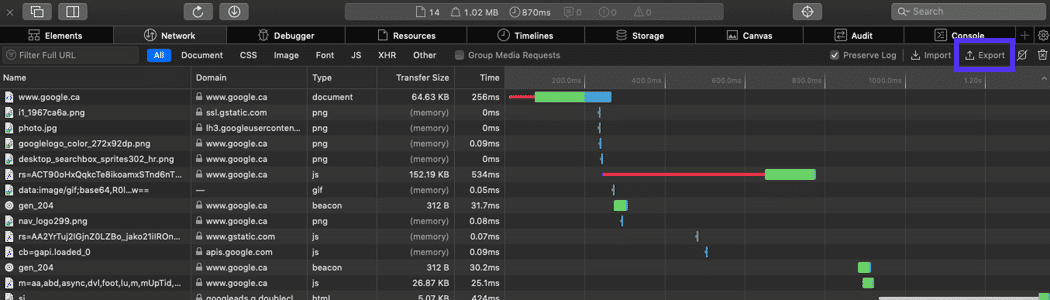

Step 3

Click the Export button and save the HAR file to your computer.

The Safari developer tool
Export the HAR file.

Resolving the Common Reasons for Error 520

Now that you have your error log, search through it and see if you notice any one of the issues below. Then, follow the steps below to resolve the issue.

Origin Server PHP Application Crashed

One common issue that causes error 520 is that one of the PHP applications have crashed on your server. Restarting PHP will fix the error.

Step 1

Using SSH, you can enter the command below for Apache servers:

apache2ctl restart

For Nginx servers, you can restart PHP using the command below:

service nginx restart

Restart PHP in MyKinsta

If your site is hosted with Kinsta, you can restart PHP in a few clicks.

Step 1

Log into MyKinsta and click on Sites on the left. Then, click on your site from the list.

The MyKinsta dashboard
Select your site from the list at MyKinsta.
Step 2

Go to the Tools tab and click the Restart PHP button.

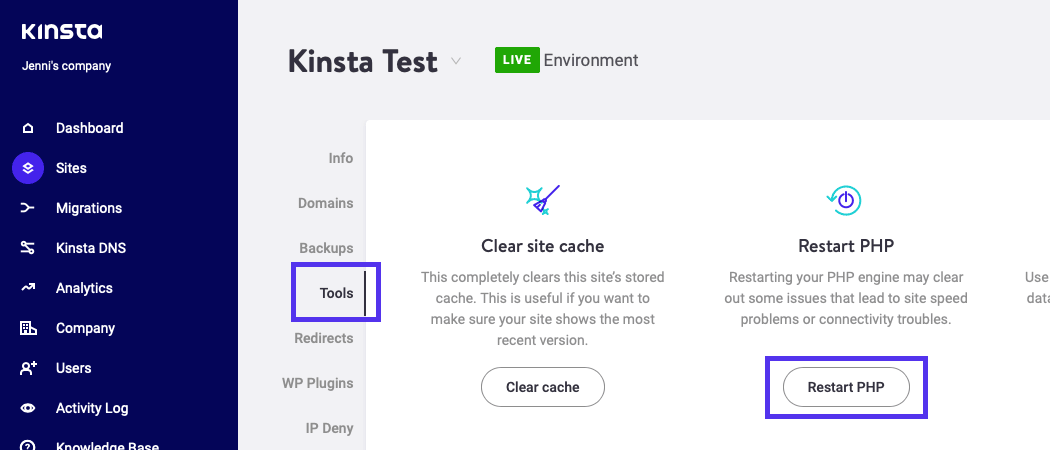

The Tools tab in the MyKinsta dashboard to restart PHP and resolve error 520
You can restart PHP in the MyKinsta control panel.

Cloudflare IP Addresses Aren’t Whitelisted

Another reason why the 520 error can occur is if Cloudflare’s IP addresses aren’t whitelisted. You can whitelist them, but the steps vary between hosting providers.

If you’re not sure how to whitelist IPs, contact your host, especially if you don’t find any settings for it.

At Kinsta, Cloudflare’s IP addresses are whitelisted by default so there’s no need to worry about this cause of the error. It also won’t impact the other reasons why the error occurs.

TCP Idle Timeouts Are Shorter Than 300 Seconds

The Transmission Control Protocol (TCP) could also be the cause of error 520.

TCP is a standard protocol that establishes and maintains a network connection. If the TCP is set to timeout in under 300 seconds, it could cause the 520 error to pop up.

You can change the TCP service timeout using a CLI command:

set service Service-HTTP-1 -svrTimeout 500

Headers Exceed 8 KB

This issue is typically due to too many cookies or cookies that are too large. The HAR file that you downloaded during the troubleshooting process will show you if this is the problem.

Cloudflare has a limit of 8 KB that can be used for headers.

If you authored a plugin that requires too many cookies or has too much data in its cookies, try to reduce them. Or, if you’re using a lot of plugins that all need cookies, remove some of them (you should always use quality plugins).

Elementor Users

When you try to edit your WordPress site using Elementor and you get the 520 error – “Web server is returning an unknown error” – you can check the following.

First, you can try a different web browser.

If the problem still exists and your site is behind Cloudflare you may have a problem with Cloudflare’s Rocket Loader feature.

The issue was caused by Rocket Loader automatically changing the scripts to load asynchronously, which breaks the site editor and prevents you making changes.
By creating rules in Cloudflare you can solve this issue.

For Elementor pages: Site URL/*elementor*
For Elementor templates: Site URL/?elementor_library=*

Empty Response from Your Server

This problem occurs when your site lacks an HTTP status code or response body. To resolve it, make sure your DNS settings are set correctly for your site’s domain.

The steps involved to check your settings depends on your DNS host. If your hosting plan has DNS bundled with it, then check with your hosting provider.

It may be important to note that if you updated your DNS settings, it may take up to 72 hours for your site to propagate. This means your site may be unavailable for up to three days.

After changing your DNS settings, you need to clear your site’s cache. If you have a caching plugin installed on your WordPress site, you can check its documentation if you’re unsure of how to clear your site’s cache from the plugin’s settings.

You can also clear your site’s cache through your hosting provider. Be sure to check with them if you need to know how to do this for your site.

If your site is hosted with Kinsta, you can click Sites in the menu, then on your listed site.

Then, click the Tools tab and click the Clear cache button.

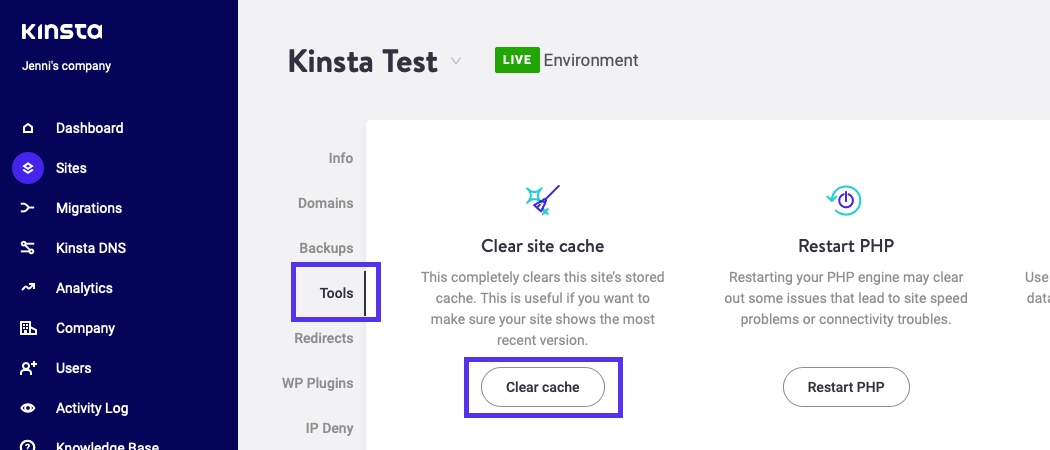

The Tools tab in MyKinsta
You can clear your site’s cache using MyKinsta.

If you have updated your DNS settings, your site is available again, you cleared your site’s cache and you still are experiencing error 520, restart your server.

If you don’t find the option in your settings, contact Kinsta’s support team and we’ll help you with this.

Missing Response Headers

According to Mozilla,

“A response header is an HTTP header that can be used in an HTTP response and that doesn’t relate to the content of the message. Response headers, like Age, Location or Server are used to give a more detailed context of the response.”

Missing response headers can be caused by a multitude of reasons.

Your best bet with this issue is to use a debugging tool like Fiddler to debug the issue and see exactly what the problem is so you can fix it.

Server not Returning Proper HTTP Error Responses

When your server sent an invalid error response, it could have caused the 520 error. This means the message didn’t fit in with the standard list of HTTP response codes.

It’s caused by your server or it could also be something on your server such as PHP applications or possibly plugins used on your WordPress site.

If you can’t find the source for the improper error code to fix it, try contacting support for further help.

Enabling Cloudflare Again

Check to see if you receive the error again. If you do, keep Cloudflare disabled and continue troubleshooting.

If the 520 error has been resolved, enable Cloudflare again.

Step 1

To do this, log into Cloudflare and if you disabled Cloudflare by turning the cloud gray in your account, start by selecting your site from the list.

The Cloudflare dashboard
Select the site where you want to enable Cloudflare.

Step 2

Click the DNS tab, then click the gray cloud to re-enable Cloudflare.

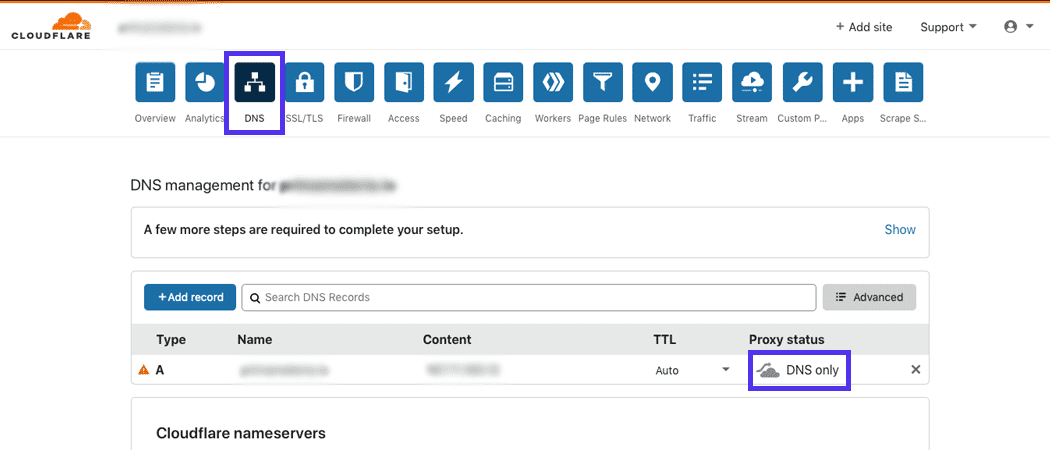

The DNS tab on the Cloudflare site
Click the gray cloud to enable Cloudflare.

Restoring Cloudflare After Pausing It

Step 1

If you paused Cloudflare earlier, restore it by logging into Cloudflare and click on your listed site in the dashboard.

The Cloudflare dashboard
Select the site where you need to restore Cloudflare.

Step 2

Then, go to the Overview tab and scroll down to the bottom of the page until you see the Advanced Actions sections in the sidebar on the right-hand side of the page.

Click the Enable Cloudflare on Site link.

The Cloudflare dashboard
Click the link the enable Cloudflare again.

Turning off Development Mode

Step 1

If you have previously turned on Cloudflare’s development mode, you can turn it off by logging in. Then, click your site that’s listed on the page.

The Cloudflare dashboard
Select your site.

Step 2

Next, go to the Caching tab.

Caching tab on Cloudflare’s site
Click the Caching tab.

Step 3

Scroll down to the Development Mode section and click the toggle button that’s currently set to “On.”

The Caching Tab
Click the toggle to disable development mode.

What to Do If All Else Fails

If you’re still seeing issues, contact Cloudflare support.

Provide them with the following details:

  • Full URL(s) of the requested resource when the error occurred.
  • Cloudflare’s Ray ID from the page where you saw the error 520 message.
  • The output from http://your-site.com/cdn-cgi/trace, but be sure to replace “your-site.com” with your actual domain name.
  • Two HAR files: One from when Cloudflare was enabled for your site and one more from when you had Cloudflare disabled.

Summary

The 520 error can seem confusing, especially since it’s a Cloudflare error. But, it has to do with an error with your server that causes Cloudflare to not connect.

The steps above are the solutions to the most common causes of error 520. If you’re still having issues after trying them, you might want to contact Cloudflare or your hosting support.

Suggested reading: How to Set up Cloudflare APO for WordPress.


Save time, costs and maximize site performance with:

  • Instant help from WordPress hosting experts, 24/7.
  • Cloudflare Enterprise integration.
  • Global audience reach with 34 data centers worldwide.
  • Optimization with our built-in Application Performance Monitoring.

All of that and much more, in one plan with no long-term contracts, assisted migrations, and a 30-day-money-back-guarantee. Check out our plans or talk to sales to find the plan that’s right for you.

[ad_2]

Jaspreet Singh Ghuman

Jaspreet Singh Ghuman

Jassweb.com/

Passionate Professional Blogger, Freelancer, WordPress Enthusiast, Digital Marketer, Web Developer, Server Operator, Networking Expert. Empowering online presence with diverse skills.

jassweb logo

Jassweb always keeps its services up-to-date with the latest trends in the market, providing its customers all over the world with high-end and easily extensible internet, intranet, and extranet products.

GSTIN is 03EGRPS4248R1ZD.

Contact
Jassweb, Rai Chak, Punjab, India. 143518
Item added to cart.
0 items - 0.00
